| 2019 Dodge Ram 2500 - 3500 |
WARNING
When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Do not place a fuse inside a circuit breaker cavity or vice versa. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, transmission system) or steering system blows, contact an authorized dealer.
Power Distribution Center
 |

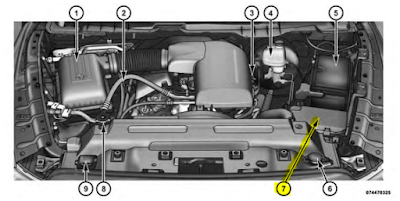

| 7 - Fuse Box under the Hood Location |
The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.
 |
| Power Distribution Center Cover |
Cavity ... Cartridge Fuse ... Description
F01 80 Amp Black – Rad Fan Control Module – If Equipped (DS 1500 Only)
F02 60 Amp Yellow – ABS Pump Motor (HD Only)
F03 60 Amp Yellow – Rad Fan – If Equipped (Radiator Fan)
F04 50 Amp Red 400W Inverter – If Equipped (HD Only)
F05 40 Amp Green , 50 Amp Red (Special Services Vehicle (SSV)) – Compressor For Air Suspension – If Equipped
F06 40 Amp Green – ABS Pump Motor (DS 1500 Only)
F07 40 Amp Green – Starter Solenoid
F08 20 Amp Blue (DS 1500 LD/ Cummins Diesel) , 40 Amp Green –– NOX Sensor – If Equipped Aux Relay Output- SSV Only
F09 40 Amp Green (SSV & Cummins Diesel) , Diesel Fuel Heater – If Equipped
F09 30 Amp Pink – Brake Vacuum Pump – If Equipped (HD Only)
F10 40 Amp Green – Body Controller / Exterior Lighting #2
F11 30 Amp Pink – PWR - Trailer Tow Electric Brake Batt Feed – If Equipped (DS 1500 Only)
F11 40 Amp Green – Brake System Module (ECU and Valves) (HD Only)
F12 40 Amp Green – Body Controller #3
F13 40 Amp Green – Blower Motor
F14 40 Amp Green – Body Controller #4 / Exterior Lighting
F15 30 Amp Pink , 40 Amp Green , Power Side Steps – If Equipped (HD Only) , Extra Fuse - SSV Only
F16 30 Amp Pink – Smart-Bar Module – If Equipped (HD Only)
F17 30 Amp Pink – Winch Control Module – If Equipped (HD Only)
F19 - 20 Amp Blue (DS 1500 LD Diesel) 30 Amp Pink (Cummins Diesel) – SCR – If Equipped
F20 30 Amp Pink – Passenger Door Module
F21 30 Amp Pink – Drive Train Control Module
F22 20 Amp Blue – Engine Control Module GPEC / Heavy Duty / Other – If Equipped
F22 25 Amp White (Cummins Diesel) – PCM – If Equipped
F23 30 Amp Pink – CBC Feed # 1
F24 30 Amp Pink – Driver Door Module
F25 30 Amp Pink – Front Wiper
F26 30 Amp Pink – Antilock Brakes / Stability Control Module / Valves – If Equipped (DS 1500 Only)
F28 20 Amp Blue – Trailer Tow Backup Lights – If Equipped
F29 20 Amp Blue – Trailer Tow Parking Lights – If Equipped
F30 30 Amp Pink – Trailer Tow Receptacle / Trailer Tow (Separate E-Brake)/
Trailer Tow (BUX)
F31 30 Amp Pink – Diesel Heater Control – If Equipped (DS 1500 LD Diesel)
F31 20 Amp Blue – Aux App SSV Only - If Equipped
F32 – – Aux Feed, Special Services Vehicle-If Equipped (DS 1500 Only)
F33 20 Amp Blue – Trans Control Module – If Equipped (HD Only) Aux Feed, SSV Only (DS 1500 Only)
F34 30 Amp Pink – Vehicle System Interface Module #2 – If Equipped (HD Only)
SSV (DS 1500 Only)
F35 30 Amp Pink – Sunroof – If Equipped
F36 30 Amp Pink – Electric Back Light – If Equipped
F37 30 Amp Pink – Fuel Heater #2, Aux Relay 2 – If Equipped (HD Only)
SSV (DS 1500 Only)
F38 30 Amp Pink – Integrated Trailer Brake Module – If Equipped (HD Only) Power Inverter 115V AC – If Equipped (DS 1500 Only)
F39 20 Amp Blue – Power Outlet – SSV Only
F40 – 10 Amp Red Ventilated Seats – If Equipped (HD Only)
Cavity ... Micro Fuse ... Description
F41 – 10 Amp Red Active Grille Shutter / Active Air Dam – If Equipped
F42 – 20 Amp Yellow Horn
F43 – 15 Amp Blue Heated Steering Wheel – If Equipped (HD Only)
F44 – 10 Amp Red Diagnostic Port
F46 – 10 Amp Red Upfitters Relay Coil – If Equipped (HD Only)
Spare (DS 1500 Only)
F49 – 10 Amp Red Instrument Panel Cluster / HVAC (DS 1500 Only) Instrument Cluster / MOD CSG (HD Only)
F50 – 20 Amp Yellow Air Suspension Control Module – If Equipped
F51 – 10 Amp Red Ignition Node Module / Keyless Ignition Node Module, Radio Frequency Hub Module / Electric Steering Column Lock - If Equipped
F52 – 5 Amp Tan Battery Sensor
F53 – 20 Amp Yellow Trailer Tow – Left Turn/Stop Lights - If Equipped
F54 – 20 Amp Yellow Non Memory Adjustable Pedals - If Equipped
F56 – 15 Amp Blue Additional Diesel Content - If Equipped (DS 1500 Only)
F57 – 20 Amp Yellow TCM/PCM / Solenoid Trans Pressure SW (RFE Trans Only) – If Equipped (HD Only) Transmission (DS 1500 Only)
F58 – 10 Amp Red Bed Lighting (LED) – If Equipped (HD Only)
F60 – 15 Amp Blue Underhood Lamp / TCM – If Equipped (DS 1500 Only)
F61 – 10 Amp Red UREA Sensor / PM Sensor – If Equipped (DS 1500 LD Diesel & Cummins Diesel)
F62 – 10 Amp Red Air Conditioning Clutch
F63 – 20 Amp Yellow Ignition Coils (Gas), Ignition Coils Capacitors (Gas) / Short Runner Valve Actuator / Urea Heater Control Unit (DS 1500 LD Diesel) / RLY Coil Feed-SCR (DS 1500 LD Diesel)
F64 – 25 Amp Clear Fuel Injectors / Powertrain Control Module / SRV – If Equipped
F65 – 10 Amp Red MOD Inverter (Wake Up) / Power Port / USB IP / WCPM – If Equipped (HD Only) Spare (DS 1500 Only)
F66 – 10 Amp Red Sunroof / Light and Rain Sensor Module / Inside Rearview Mirror / Passenger Window SW / USB Port Rear / Feed for R/A RLY #2 Coil – If Equipped
F67 – 10 Amp Red CD / DVD / UCI Port – If Equipped (HD Only) Bluetooth Hands-Free Module / CD – If Equipped (DS 1500 Only)
F68 – 10 Amp Red AEB RACAM HTR – If Equipped (HD Only)
F69 – 15 Amp Blue SCR Module – If Equipped (HD Only)
F70 – 30 Amp Green Fuel Pump Motor / K09 RLY Coil Feed (Cummins Diesel) – If Equipped
F71 – 25 Amp Clear Amplifier / Active Noise Cancelation – If Equipped (HD Only)
F72 – 10 Amp Red PCM / DC/DC Converter Voltage– If Equipped (DS 1500 Only)
F73 – 20 Amp Yellow Fuel Transfer Pump (Rear Tank) – If Equipped (HD Only)
F74 – 20 Amp Yellow Brake Vacuum Pump Gas/Diesel – If Equipped (DS 1500 Only)
F74 – 10 Amp Red Backup Alarm – If Equipped (HD Only)
F75 – 10 Amp Red ATMM / Coil-SCR Module RLY– If Equipped (HD Only) Coolant Temperature Valve – If Equipped (DS 1500 Only)
F76 – 10 Amp Red Electronic Stability Control (HD Only) Brake System Module / Stop Lamp Switch / Electric Park Brake / Clutch Pedal Switch (DS 1500 Only)
F77 – 10 Amp Red Drivetrain Control Module / Front Axle Disconnect Module / TCM (HD Only) Drivetrain Control Module / ELSD / Front Axle Disconnect Module / Transmission Control Relay / RDM / Power Take Off Unit – If Equipped (DS 1500 Only)
F78 – 10 Amp Red Engine Control Module / Powertrain Control Module / Electric Power Steering (DS 1500 Only)
F78 – 15 Amp Blue Engine Control Module / Powertrain Control Module / AEB RACM MOD / Feed To AUX PDC Relay Coils (HD Only)
F79 – 15 Amp Blue ID / Clearance Lights
F80 – 10 Amp Red Universal Garage Door Opener / Compass / Anti-Intrusion Module (DS 1500 Only) ASSY Overhead Console / SW Assist / SW 911 – If Equipped (HD Only)
F81 – 20 Amp Yellow Trailer Tow Right Turn / Stop Lights - If Equipped
F82 – 10 Amp Red Steering Column Control Module / Cruise Control
F83 – – No Connection
F84 – 15 Amp Blue ASBM / HVAC / ICS / Rear Heated Seat Switches
F85 – 10 Amp Red Airbag Module
F86 – 10 Amp Red Airbag Module
F87 – 10 Amp Red Air Suspension / ITBM / Steering Column Control Module / MOD Gateway CAN-C Trailer TPM (HD Only) Air Suspension / Trailer Tow / DC/DC Converter (Voltage
Stabilizer) / Steering Column Control Module / Occupant Classification Sensor (DS 1500 Only)
F88 – 15 Amp Blue Instrument Panel Cluster
F90/F91 – 20 Amp Yellow IGN or BATT Customer Selectable – If Equipped (HD Only) Power Outlet (Rear Seats) Customer Selectable (DS 1500 Only)
F93 – 20 Amp Yellow Cigar Lighter - If Equipped
F94 – 10 Amp Red Shift-By-Wire / Transfer Case Switch (DS 1500 Only) Shift-By-Wire / Transfer Case Switch / Module TPM Trailer (HD Only) / Module Gateway Can-C Trailer TPM (HD Only)
F95 – 10 Amp Red Rearview Camera / Park Assist / CHMSL Camera / Blind Spot Sensor / Surround View Camera (HD Only) Rear Camera / Park Assist / Blind Spot Sensor / Compass
(DS 1500 Only)
F96 – 10 Amp Red Rear Seat Heater Switch / Trunk Lamp With Flashlamp Charger / Truck Lamp - If Equipped (DS 1500 Only) Trailer Camera – If Equipped (HD Only)
F97 – 25 Amp Clear Rear Heated Seats And Heated Steering Wheel – If Equipped (DS 1500 Only)
F97 – 20 Amp Yellow Front Heated Seat Passenger – If Equipped (HD Only)
F98 – 25 Amp Clear Front Heated Seats – If Equipped (DS 1500 Only)
F98 – 20 Amp Yellow Front Heated Seat Driver – If Equipped (HD Only)
F99 – 10 Amp Red HVAC / DASM (DS 1500 Only) HVAC / In-Car Temperature Sensor / CSG MOD / Humidity Sensor (HD Only)
F100 – 10 Amp Red Upfitters – If Equipped (HD Only)
F101 – 15 Amp Blue SSV Only
F101 – 20 Amp Yellow Rear Heated Seat Right (HD Only)
F102 – 20 Amp Yellow Rear Heated Seat Left / Run RLY #3 Coil (HD Only)
F103 – 10 Amp Red HeadLamp AFLS (HD Only)
F104 – 20 Amp Yellow ... Power Outlets (Instrument Panel / Center Console) / Trunk – If Equipped (DS 1500 Only) UCI Port / USB Rear (HD Only)
CAUTION
- When installing the power distribution center cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the power distribution center and possibly result in an electrical system failure.
- When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.
